Automatic peckaging machine into sachet

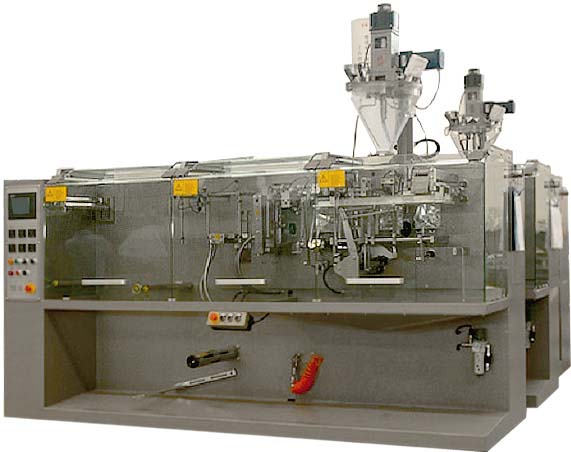

ENLARGE :: SACHET bags packaging machine

Q-TECHNOLOGIES GROUP GMBH offers packaging machines of stroke type into SACHET type bags. This machine type is intended for packaging of such powder-like, bulk, liquid, paste-like materials and granulated products as sugar, salt, pepper, tea, beverage concentrates, chemical and pharmaceutical granulates into SACHET type bags. Automatic packaging machines are widely used in pharmaceutical, food and chemical industry.

ENLARGE  :: Technological scheme

Standard configuration, components and technical parameters of QUARCO PHARM & MEDICAL EQUIPMENT packaging machines:

  • Machine is made in monobloc version of horizontal type;
  • Packaging material feeding unit is of motorized type with film tension control elements and control system for the end of packing material;
  • Photoelectric tracing system and packaging material centering;
  • Sealing unit for side bag joints;
  • Cooling unit;
  • Automatic machine drive by servoengine Panasonic, Japan;
  • Standard razor unit;
  • Upper joint sealing unit;
  • Conveyor;

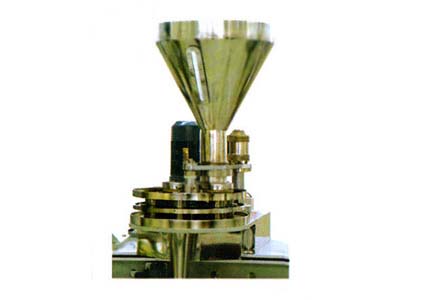

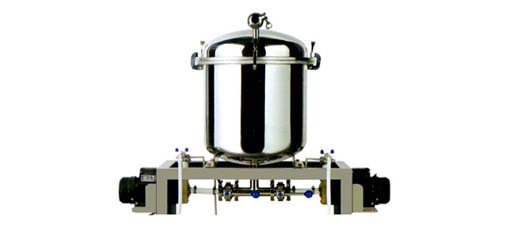

ENLARGE :: Dosing bunker for liquidsENLARGE :: Dosing bunker with volumetric dosingENLARGE :: Dosing bunker for dry products
ENLARGE :: Dosing bunker for ointments
  • Контроль над технологическим процессом и управление исполнительными механизмами, производится с помощью промышленного контроллера Mitsubishi, Japan и инженерной панели (TouchScreen) Digital, Japan;
  • Control panel with mounted engineer panel has IP55 protection class;
  • Controlled and displayed parameters:
    • Performance;
    • Heating element temperature;
    • Dosing volume;
    • Amount of finished product;
    • Current time;
  • Optional configuration, components and technical parameters of QUARCO PHARM & MEDICAL EQUIPMENT packaging machines:

    1. Machine is furnished with any or all dosimeter types (volume filling, screw (with additional screw for dose change) or weight type) as requested by customer;
    2. Depending on purpose, machine may be mounted with different dosimeter types to dispense multi-component products into a single SACHET bag;
    3. Machine case is made of stainless steel AISI304. All machine units and parts have convenient access for adjustment, cleaning and maintenance;

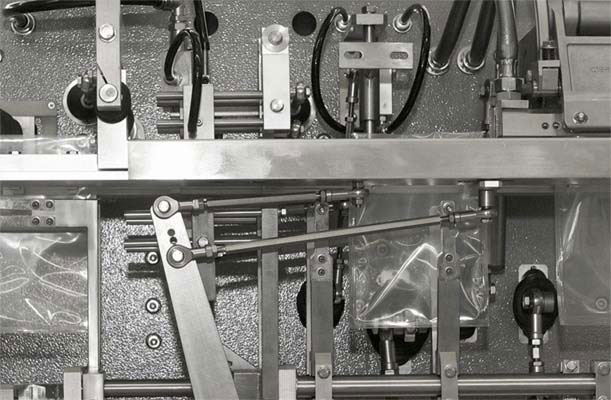

      ENLARGE :: Bag transporting unit

    4. Photo label probe to work with the film marked with design;
    5. Outlet container for transport and easy counting of bags;
    6. Dust-removing aspiration system;
    7. The following units are mounted on the machine: direct cutting unit for easy opening, V-shaped cutting unit for easy opening, date labeling and cold printing unit (stamping on bag joint), date labeling and hot printing unit (stamping through the print tape);

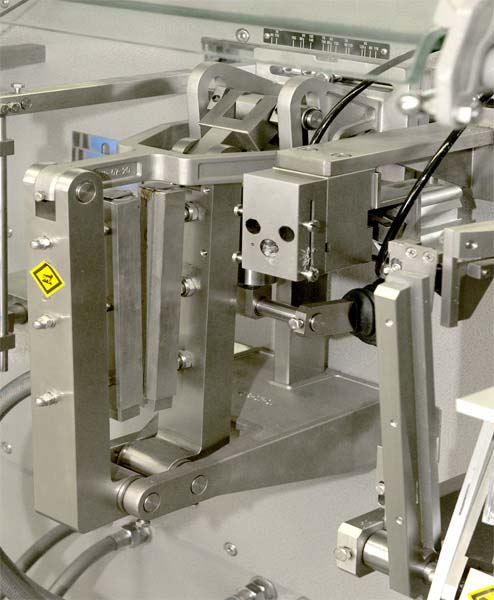

      ENLARGE :: Side joint sealing unit

    Machine control scheme

    All family of QUARCO PHARM & MEDICAL EQUIPMENT automatic machines complies with GMP requirements and EC electric safety regulations.

    Machine technical parameters



    NameMD-130MD-180MD-180II
    Minimal bag size, mm60 х 8060 х 8065 х 80
    Maximal bag size, mm130 х 180180 х 22090 х 220
    Maximal performance, pcs./min7070140
    Maximal filling volume, ml160360100
    Number of dosing devices, pcs.122






    Why is pharmaceutical equipment under QUARCO PHARM & MEDICAL EQUIPMENT trademark chosen?

    Perhaps, this question can be a matter of interest only to potential clients of our company rather than to our loyal clients and partners. The latter are confident in the quality of our production, and for them the choice of pharmaceutical equipment under QUARCO trademark has long been plain as day. So do ask, genuinely, why, having a relatively vast choice among the suppliers of similar production, our clients and partners have chosen our Company and ТМ QUARCO?

    First of all, this is because the family of pharmaceutical equipment under QUARCO PHARM & MEDICAL EQUIPMENT trademark is rather broad and enables to meet the demands of enterprisers from different business segments: thus, QUARCO coaters can be used both in pharmaceutical and food industries, with a possibility to coat tablets, as well as dragee and chewing gums. The sphere of application of QUARCO packaging equipment (blister packaging, “SACHET” type bag and DoyPack type bag packaging, cardboard machines) is also extremely extensive and embraces pharmaceutics, food industry and cosmetology.  TM QUARCO accessory equipment (calibrators, lifting columns and “drum tumblers”) is popular with manufacturers of medicinal products, feed compounds, with enterprises from chemical, agrochemical and food industries.

    In other words, it is fair to say that pharmaceutical equipment under QUARCO PHARM & MEDICAL EQUIPMENT trademark is fairly universal and meets not only the demands of manufactures of solid and liquid therapeutic forms but also the demands of enterprises from other branches.

    Moreover, the production range of our Company includes such technologically complicated pharmaceutical equipment as lyophilic dryers, dryers with fluidized bed, and automatic lines of filling, sterilizing and sealing vials. Adequate supply of high-quality pharmaceutical equipment is unreachable without a careful and serious approach to the production issue, manufacture of customer-friendly equipment control systems, full preparation of relevant documents, and performing of start-up works after installation. Q-TECHNOLOGIES GROUP GMBH Company executes the whole range of the above-mentioned works and activities, so providing timely and robust supply of equipment needed by customers, which namely attracts our clients and partners and guides them to make   their final choice in favor of ТМ QUARCO equipment
    In fact, it is fair to say that the clients and partners acquire not only high-quality pharmaceutical equipment under ТМ QUARCO but also a full package of services regarding supply and start-up works, including supply of necessary spare parts and components and a 24-month warranty period.

    Finally, the production under QUARCO PHARM & MEDICAL EQUIPMENT trademark is not limited to the equipment introduced at the official website and in catalogues. Our clients refer to us with non-standard requests for: container equipment with particular characteristics and specific features, filling machines for both hard and soft gelatin capsules, lab lyophilic dryers, lab coaters, lab dryers with fluidized bed, etc. Nevertheless, a request being specific or non-standard by no means influences the speed of forwarding a business proposal to the Customer, nor does this delay delivery, nor does this lower quality of the supplied equipment, nor does this affect the whole package of services supplied by our Company. For us, the primary purpose is the maximum satisfaction of demands of our Client, and namely for this reason our customers have become loyal clients and partners of Q-TECHNOLOGIES GROUP GMBH Company, with many of whom we have built not only business but also long-term, genuinely friendly and partnership relationships.

    Thus, the answer to the question of the reasons for choosing pharmaceutical equipment under ТМ QUARCO by our partners is clear and is contained in the abbreviation of our trademark: QUA means QUAlity, R means Reliability, CO means Customer Oriented.

    To convenience our clients, Q-TECHNOLOGIES GROUP GMBH Company has representative offices in Russia, China and Ukraine.

    We are confident that the number of our customers will continuously grow, which means that the number of our partners and friends will grow correspondingly!

    We look forward to all new partners!
